The EDW-120 is a dual serial to Ethernet converter designed to allow RS-232 serial devices to communicate via TCP/IP Ethernet networks. DIP switches can be used for configuration of Ethernet port settings if required, and the password protected web interface is used for all other settings. Diagnostic information can be accessed via a Telnet session with more basic information offered on LEDs.

The EDW-120 is designed for use in heavy duty industrial applications. The wide power range, complete galvanic isolation and transient protection allow the EDW-120 to operate without the fear of failure caused by ground loops or noise spikes typical in the worst environments.

Only industrial grade components are used which gives the EDW-120 an MTBF of 1,000,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts. The EDW-120 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

The EDW-120 supports UDP, TCP client and TCP server connections between units or to a PC virtual COM port. It also has an array of special modes, including Single Client Mode, Dual TCP Connection, DSR Connection, RST on TCP Closure, RTS Control, Break Signalling and Last Calling allowing the unit to be used in a wide range of complex applications.

The Modbus TCP Gateway implementation in the EDW-120 supports Modbus RTU and Modbus ASCII in both master and slave modes.

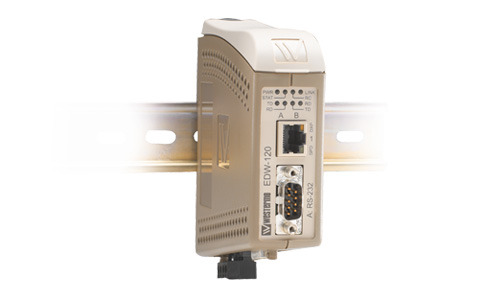

EDW-120

Product description
Status	Active
Article number	3616-0010
Ports	2 x 9-pin D-sub (male), RS-232 1 x RJ-45, Ethernet
Description	Serial Adapter
Warranty period	5 Years
EMC (Electromagnetic Compatibility)
EN 61000-6-2	Immunity industrial environments
EN 61000-6-4	Emission industrial environments
EN 55024	Immunity IT equipment
EN 50121-4	Railway signalling and telecommunications apparatus
IEC 62236-4	Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD	Enclosure contact, ± 6 kV Enclosure air, ± 8 kV
IEC 61000-4-3, RF field AM modulated	Enclosure: 20V/m 80% AM (1 kHz), 80 – 2 000 MHz 12V/m 80% AM (1 kHz), 2 000 – 2 700 MHz
ENV 50204, RF field 900 MHz	Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
EN 61000-4-4, fast transients	Signal ports, ± 2 kV Power ports, ± 2 kV
EN 61000-4-5, surge	Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line
EN 61000-4-6, conducted RF immunity	Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz
EN 61000-4-9, pulsed magnetic field	Enclosure, 1000 A/m, 6.4 / 16 µs pulse
EN 61000-4-29, voltage dips and interruption	DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage
EN 55022, radiated RF emission	Enclosure, class A
FCC part 15, radiated RF emission	Enclosure, class A
EN 55022, conducted emission	DC power ports, class B
Safety
EN 60950-1, dielectric strength	Signal port to other isolated ports, 1.5 kVrms 50 Hz 1 min Power port to other isolated ports, 2 kVrms 50 Hz 1 min
Safety	UL/CSA/IEC/EN 60950-1, IT
Climatic
Temperature, operating	Operating, –25 to +70°C (–13 to +158°F)
Temperature, storage	Storage & Transport, –40 to +70ºC (–40 to +158ºF)
Humidity, operating	Operating, 5 to 95% relative humidity
Humidity, storage	Storage & Transport, 5 to 95% relative humidity
Enclosure
Enclosure	UL 94, PC / ABS, flammability class V-1
Dimensions (W x H x D)	34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
Weight	0.2 kg
Degree of protection	IP 21
Cooling	Convection
Mounting	Horizontal on 35 mm DIN-rail
Mechanical
IEC 60068-2-6, vibration	Operating: 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz
IEC-60068-2-27, shock	Operating, 15 g, 11 ms
Interface specifications, power
Rated voltage	12 to 48 VDC
Operating voltage	10 to 60 VDC
Rated current	200 mA @ 12 VDC 100 mA @ 24 VDC 50 mA @ 48 VDC
Rated frequency	DC
Inrush current	0.13 A2s @ 48 VDC, @ 10 ms
Startup current	< 0.3 A. Sensitive power supplies need current limit >= 0.3A
Polarity	Reverse polarity protected
Redundant power input	Yes
Isolation to	All other 2 k Vrms
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable	Not required
Interface specifications, RS-232
Electrical specification	EIA RS-232
Data rate	300 bit/s – 115.2 kbit/s
Data format	7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
Protocol	Transparent, optimised by packing algorithm
Retiming	Not applicable
Circuit type	SELV
Transmission range	15 m / 49 ft
Isolation to	Power 2 kVrms Ethernet 1; 1.5 kVrms
Connection	9-pin D-sub male (DTE)
Shielded cable	Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails
Conductive housing	Isolated to all other circuits
Number of ports	2
Interface specifications, 10/100BaseTX
Electrical specification	IEEE std 802.3. 2000 Edition
Data rate	10 Mbit/s or 100 Mbit/s, auto-negotiated or manually set by DIP-switches
Protocol	UDP, TCP, ICMP, HTTP and ARP
Duplex	Full- or half duplex, auto-negotiated or manually set by DIP-switches
Circuit type	TNV-1
Transmission range	100 m
Isolation to	Power 2 kVrms RS-232 1.5 kVrms RS-422/485 1.5 kVrms
Connection	RJ-45 shielded, auto MDI/MDI-X
Shielded cable	Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing	Isolated to all other circuits
