Product description |
|
Status |
Active |
|
Article number |
3623-0201 |
|
Ports |
2 x 10 Mbit/s or 100 Mbit/s, Ethernet TX, RJ-45.
1 x 300 bit/s to 115.2 kbit/s, D-sub, RS-232.
2 x SIM slots. |
|
Description |

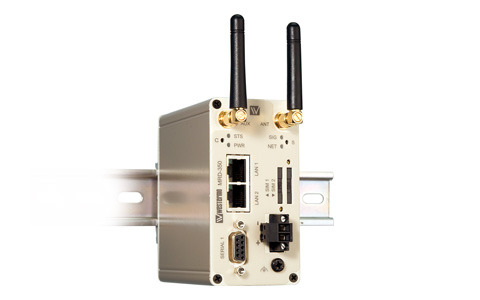

Industrial mobile broadband
/ 3G router/ GPRS / EDGE / 3G / HSPA |
|
Warranty period |
5 Years |
|
Standard compliance |
|
R&TTE |
Article 3.1a:
EN 60950, Safety
EN 50385, EMF exposure
Article 3.1b:
EN 301 489-1, ERM/EMC
EN 301 489-7, ERM/EMC GSM
EN 301 489-24, ERM/EMC 3G
Article 3.2:
EN 301 908-1, ERM 3G
EN 301 908-2, ERM 3G
EN 301 511, GSM |
|
Reliability prediction |
|
Service life, operating |
10 years |
|
EMC (Electromagnetic Compatibility) |
|
EN 55024 |
Electromagnetic compatibility – Immunity IT equipment |
|
EN 55024 + A1 + A2 |
Electromagnetic compatibility – Immunity IT equipment |
|
EN 55022 |
Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement. |
|
EN 55022 +A1 |
Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement. |
|
Safety |
|
Safety |
IEC/EN 60950-1, IT equipment |
|
Climatic |
|
Temperature, operating |
–30 to +60ºC (–22 to +140ºF) |
|
EMC specifications |
|
EN 61000-4-2, ESD |
Enclosure contact, ± 4 kV (crit A)
Enclosure air, ± 8 kV (crit A) |
|
IEC 61000-4-3, RF field AM modulated |
Enclosure, 10 V/m (crit A), (80 – 2700 MHz) |
|
EN 61000-4-4, fast transients |
Signal ports, ± 1 kV (crit A)
Power ports, ± 2 kV (crit A) |
|
EN 61000-4-5, surge |
Ethernet ports, ± 1 kV (direct) (crit A)
Power ports, ± 0.5 kV (line to earth) (crit A), ± 0.5 kV (line to line) (crit A) |
|
EN 61000-4-6, conducted RF immunity |
All ports, 10 V/m, (crit A), 0.15 – 80 MHz) |
|
EN 55022, radiated RF emission |
Enclosure, class B |
|
EN 55022, conducted emission |
AC power ports, class B
DC power ports, class B
Ethernet ports, class B |
|
Enclosure |
|
Dimensions (W x H x D) |
53 x 103 x 103 mm (2.08 x 4.05 x 4.05 in) |
|
Weight |
0.4 kg |
|
Degree of protection |
IP 40 |
|
Cooling |
Convection |
|
Mounting |
Horizontal on 35 mm DIN-rail |
|
Interface specifications, power |
|
Rated voltage |
12 – 48 VDC |
|
Operating voltage |
10 – 60 VDC |
|
Rated current |
370 mA @ 12 VDC |
|
Startup current |
1000 mA @ 12 VDC |
|
Rated frequency |
DC |
|
Consumption guidance/Voltage/Mode/Consumtion |
12 VDC / GPRS Idle / 165 mA
24 VDC / GPRS Idle / 90 mA
48 VDC / GPRS Idle / 55 mA
12 VDC / GPRS Send / 240 mA
24 VDC / GPRS Send / 130 mA
48 VDC / GPRS Send / 75 mA
12 VDC / 3G Idle / 225 mA
24 VDC / 3G Idle / 120 mA
48 VDC / 3G Idle / 70 mA
12 VDC / 3G Send / 275 mA
24 VDC / 3G Send / 155 mA
48 VDC / 3G Send / 80 mA
12 VDC / 3G Send&Receive / 330 mA |
|
Interface specifications, RS-232 |
|
Electrical specification |
EIA RS-232 |
|
Data rate |
300 bit/s – 115.2 kbit/s |
|
Data format |
7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits |
|
Protocol |
Transparent, optimised by packing algorithm |
|
Circuit type |
SELV |
|
Transmission range |
15 m / 49 ft |
|
Connection |
9 pin D-sub female |
|
Shielded cable |
Not required |
|
Conductive housing |
Yes |
|
Number of ports |
1 |
|
Interface specifications, 10/100BaseTX |
|
Electrical specification |
IEEE std 802.3. 2005 Edition |
|
Data rate |
10 Mbit/s, 100 Mbit/s, manual or auto |
|
Duplex |
Full or half, manual or auto |
|
Circuit type |
SELV |
|
Transmission range |
100 m / 328 ft |
|
Isolation to |
All other |
|
Connection |
RJ-45 auto MDI/MDIX |
|
Shielded cable |
Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
|
Conductive housing |
Yes |
|
Number of ports |
1 |
|
Interface specifications, Antenna |
|
Frequency bands |
GSM / GPRS / EDGE, 850 / 900 / 1800 / 1900 MHz
3G / HSDPA / HSUPA / HSPA, 850 / 900 / 2100 MHz |
|
Main Antenna |
Antenna connector labeled ANT (TX / RX) |
|
Optional Antenna |
Antenna connector labeled AUX, receive diversity (RX only) |
|
Connection |
SMA female, impedance: 50 ohm |
|
Interface specification, SIM |
|
Electrical specification |
3 volts SIM supported |
|
Number of slots |
2
|
