Remote access removes boundaries, eliminates the need for time consuming site visits and provide a network infrastructure suitable for today’s “always-on” society. The MR-260 mobile broadband GPRS / EDGE / 3G router uses the Internet to cost effectively inter-connect systems, allowing HMI, PLCs, sensors etc to communicate with each other.
The dual SIMs ensures high availability for critical applications. Bundle the mobile broadband GPRS with ADSL devices, Falcon or DR-260, for both wired and wireless access.
Devices connected to the Internet require countermeasures towards cyber threats. The MR-260 offers protection of transmissions from malicious eavesdroppers via encrypted communication tunnels (VPN, optional upgrade), access prevention from unauthorized addresses, and extensive logging to detect intrusion attempts. With an advanced and highly configurable firewall the unit is easily set up to only allow valid application data.
The MR-260 with its built-in serial port offers a simple modem replacement solution with the benefit of not having to reprogram or change any other component. The powerful software in the MR-260 offers methods to engineers to easily analyze the data-flow, valuable for fast troubleshooting of connected devices.
The MR-260 supports GSM, GPRS, EDGE, 3G, HSPA, and is equipped with one serial port and one Ethernet port.

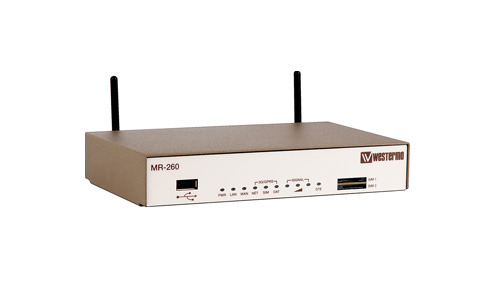

MR-260
Product description
Status
Active
Article number
3622-0202
Ports
1 x 10 Mbit/s or 100 Mbit/s, Ethernet TX, RJ-45.
1 x 300 bit/s to 115.2 kbit/s, D-sub, RS-232.
2 x SIM slots.
1 x USB.
Description
Mobile broadband router
Warranty period
5 Years
Standard compliance
R&TTE
Article 3.1a:
EN 60950, Safety
EN 50385, EMF exposure
Article 3.1b:
EN 301 489-1, ERM/EMC
EN 301 489-7, ERM/EMC GSM
EN 301 489-24, ERM/EMC 3G
Article 3.2:
EN 301 908-1, ERM 3G
EN 301 908-2, ERM 3G
EN 301 511, GSM
Reliability prediction
MTBF, operating
218 000 hours, Bellcore RQGR at 40°C
EMC (Electromagnetic Compatibility)
EN 55024
Electromagnetic compatibility - Immunity IT equipment
EN 55024 + A1 + A2
Electromagnetic compatibility - Immunity IT equipment
EN 55022
Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
EN 55022 +A1
Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
