Remote access removes boundaries, eliminates the need for time consuming site visits and provide a network infrastructure suitable for today’s “always-on” society. The MR-210 mobile broadband GPRS / EDGE router uses the Internet to cost effectively inter-connect systems, allowing HMI, PLCs, sensors etc to communicate with each other.

The dual SIMs ensures high availability for critical applications. Bundle the mobile broadband GPRS with ADSL devices, Falcon or DR-260, for both wired and wireless access.

Devices connected to the Internet require countermeasures towards cyber threats. The MR-210 offers protection of transmissions from malicious eavesdroppers via encrypted communication tunnels (VPN, optional upgrade), access prevention from unauthorized addresses, and extensive logging to detect intrusion attempts. With an advanced and highly configurable firewall the unit is easily set up to only allow valid application data.

The MR-210 with its built-in serial port offers a simple modem replacement solution with the benefit of not having to reprogram or change any other component. The powerful software in the MR-210 offers methods to engineers to easily analyze the data-flow, valuable for fast troubleshooting of connected devices.
The MR-210 supports GPRS and EDGE and is equipped with one serial port and one Ethernet port.

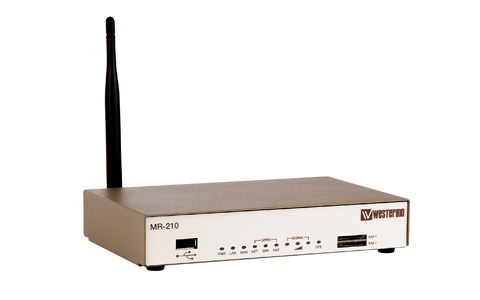

MR-210

Product description
Status	Active
Article number	3622-0201
Ports	1 x 10 Mbit/s or 100 Mbit/s., Ethernet TX, RJ-45. 1 x 300 bit/s to 115.2 kbit/s, D-sub, RS-232. 2 x SIM slots. 1 x USB.
Description	Mobile broadband router
Warranty period	5 Years
Standard compliance
R&TTE	Article 3.1a: EN 60950, Safety EN 50385, EMF exposure Article 3.1b: EN 301 489-1, ERM/EMC EN 301 489-7, ERM/EMC GSM EN 301 489-24, ERM/EMC 3G Article 3.2: EN 301 908-1, ERM 3G EN 301 908-2, ERM 3G EN 301 511, GSM
Reliability prediction
MTBF, operating	203 000 hours, Bellcore RQGR at 40°C
EMC (Electromagnetic Compatibility)
EN 55024	Electromagnetic compatibility - Immunity IT equipment
EN 55024 + A1 + A2	Electromagnetic compatibility - Immunity IT equipment
EN 55022	Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
EN 55022 +A1	Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
FCC part 15	Class B
EMC specifications
EN 61000-4-2, ESD	Enclosure contact, ± 4 kV Enclosure air, ± 8 kV
IEC 61000-4-3, RF field AM modulated	Enclosure, 3 V/m 80% AM (1 kHz), 80 – 1 000 MHz, 1 400 MHz – 2 000
EN 61000-4-4, fast transients	Signal ports, ± 0.5 kV Power ports, ± 1 kV
EN 61000-4-5, surge	Telecom/Signal ports, ± 0.5 kV line to earth Power ports, ± 2 kV line to earth, ± 2 kV line to line
EN 61000-4-6, conducted RF immunity	Power ports, 3V/m 80% AM (1 kHz), 0.15 – 80 MHz
EN 61000-4-11, Voltage dips and interruption	AC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 100 ms, 60% reduction 5000 ms, >95% reduction +30% above & –20% below rated voltage
EN 55022, radiated RF emission	Enclosure, class B
FCC part 15, radiated RF emission	Enclosure, class B
EN 55022, conducted emission	AC power ports, class A DC power ports, class B
FCC part 15, conducted emission	AC power ports, class B
Safety
Safety	UL/IEC/EN 60950-1, IT equipment
Climatic
Temperature, operating	–20 to +60ºC (–4 to +140ºF)
Temperature, storage	–40 to +85ºC (–40 to +185ºF)
Humidity, operating	5 to 95% relative humidity
Humidity, storage	5 to 95% relative humidity
Enclosure
Enclosure	Pressed steel
Dimensions (W x H x D)	173 x 36 x 119 mm (6.8 x 1.4 x 4.7 in)
Weight	0.9 kg
Degree of protection	IP 40
Cooling	Convection
Mounting	Horizontal on 35 mm DIN-rail or flat on level surface
Interface specifications, power
Rated voltage	9 – 48 VDC
Operating voltage	9 – 48 VDC
Rated current	1500 mA @ 12 VDC
Rated frequency	DC
Interface specifications, RS-232
Electrical specification	EIA/TIA-232
Data rate	300 bit/s – 115.2 kbit/s
Data format	7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
Protocol	Transparent, optimised by packing algorithm
Retiming	Yes
Transmission range	15 m / 49 ft
Connection	RJ 45
Shielded cable	Not required
Number of ports	1
Interface specifications, 10/100BaseTX
Electrical specification	IEEE std 802.3. 2005 Edition
Data rate	10 Mbit/s, 100 Mbit/s, manual or auto
Duplex	Full or half, manual or auto
Circuit type	SELV
Transmission range	100 m / 328 ft
Isolation to	All other
Connection	RJ-45 auto MDI/MDIX
Shielded cable	Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing	Yes
Number of ports	1
Interface specifications, Antenna
Frequency bands	850 MHz – 2100 MHz
Connection	SMA female, impedance: 50 ohm
Interface specification, SIM
Electrical specification	3 volts SIM supported
Number of slots	2
Interface specifications, USB
Electrical specification	USB 2.0 host interface
Data rate	Up to 12 Mbit/s (full-speed mode)
Circuit type	SELV
Maximum supply current	500 mA in total for both ports
Connection	USB receptacle connector type A
Number of ports	1
