Industrial ADSL router--WESTERMO
     Product Information
Sorry£¬no relevant downloads£¡£¡£¡
Font Size¡¾ L¡¡M¡¡S ¡¿

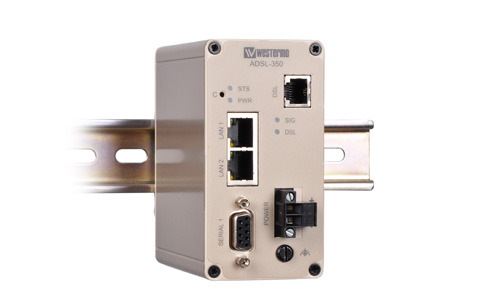

Remote access removes boundaries, eliminates the need for time consuming site visits and provides a network infrastructure suitable for today’s “always-on” society. The ADSL-350 is an industrially designed ADSL broadband router built to cope with harsh environments and the characteristics of industrial applications. The unit supports a wide range of ADSL-standards and has support for long lines.


Most devices today comes equipped with an Ethernet port for communications, therefore the ADSL-350 has a built-in two port Ethernet switch. For legacy connectivity the unit also features one RS-232-port to provide multiple connection possibilities for both new and legacy replacement installations. Designed to be installed on a DIN rail all connectors and LEDs have been positioned in the front of the unit, facing the user for easy access and fast status feedback. With the wide power input range the unit can be powered from 10 to 60 VDC and has low power consumption.

The cyber security features of the ADSL-350 prevent unauthorized access and secure the communication for Internet-enabled applications. The easy to use firewall filters incoming traffic, allowing only approved packets to pass through. To inter-connect units with each other securely over the Internet multiple VPN technologies are supported, including IPsec and OpenVPN.

Upgrading legacy solutions to become IP-enabled can prove both costly and tedious therefore the ADSL-350 includes a wide feature set for various legacy applications including both modem replacement methods as well as serial to Ethernet conversion. If there are applications that require extra attention Westermo’s extensive experience from over 35 years within industrial data communications and over 5 years of industrial ADSL expertise will be available to assist you.



Product description
Status Active
Article number 3623-0301
Ports 2 x 10 Mbit/s or 100 Mbit/s, Ethernet TX, RJ-45
1 x 300 bit/s to 115.2 kbit/s, RS-232, RJ-45
1 x ADSL, ADSL2/ASDL2+, RJ-11.
Warranty period 5 years
Description Industrial ADSL Router
Reliability prediction
Service life, operating 10 year
EMC (Electromagnetic Compatibility)
EN 55024 + A1 + A2 Electromagnetic compatibility – Immunity IT equipment
EN 55022 +A1 Information technology equipment.
Radio disturbance characteristics. Limits and methods of measurement
EMC specifications
EN 61000-4-2, ESD Enclosure contact ± 4 kV (crit A)
Enclosure air ± 8 kV (crit A)
IEC 61000-4-3, RF field AM modulated Enclosure 10 V/m (crit A)(80 – 2700 MHz)
EN 61000-4-4, fast transients Signal ports ± 1 kV (crit A)
Power ports ± 2 kV (crit A)
EN 61000-4-5, surge Ethernet ports ± 1 kV (direct) (crit A)
Power ports
± 0.5 kV (line to earth) (crit A)
± 0.5 kV (line to line) (crit A)
EN 61000-4-6, conducted RF immunity All ports 10 V/m, (crit A)(0.15 – 80 MHz)
EN 55016-2-3, radieted emission Enclosure Class B
EN 55022, conducted emission AC power ports Class B
DC power ports Class B
Ethernet ports Class B
EN 60950-1, dielectric strength IT equipment
Temperature, operating –25 to +70°C (–13 to +158°F)
Temperature, storage –40 to +85°C (–40 to +185°F)
Humidity, operating 0 to 90% relative humidity non condensing.
Humidity, storage 0 to 90% relative humidity non condensing.
Dimensions (W x H x D) 53 x 103 x 97 mm
(2.08 x 4.05 x 3.81 in)
Weight 0.40 kg
Degree of protection IP 40
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail
Interface specifications, power
Rated voltage 12 – 48 VDC
Operating voltage 10 – 60 VDC
Rated current 520 mA @ 12 VDC
Startup current 5500 mA @ 12 VDC
Rated frequency DC
Interface specifications, RS-232
Electrical specification EIA RS-232
Data rate 300 bit/s – 115.2 kbit/s
Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
Protocol Transparent, optimised by packing algorithm
Circuit type SELV
Transmission range 15 m / 49 ft
Connection 9 pin D-sub female
Shielded cable Not required
Conductive housing Yes
Number of ports 1
Interface specifications, 10/100BaseTX
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10 Mbit/s, 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type SELV
Transmission range 100 m / 328 ft
Isolation to All other
Connection RJ-45 auto MDI/MDIX
Shielded cable Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.*
Conductive housing Yes
Number of ports 2
Interface specifications, DSL
Data rate 30 Mbit Downlink, 3 Mbit Uplink
Protocol LLC/VC-MUX encap Ethernet, PPPoA, PPPoE, IPoA
Connection RJ-11
Shielded cable Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Number of ports 1
