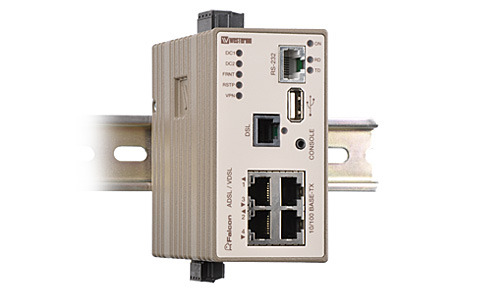

Remote access removes boundaries, eliminates the need for time consuming site visits and provides a network infrastructure suitable for today’s “always-on” society. The Falcon industrial broadband router is the world’s first VDSL2 router designed for use in industrial environments. Due to the fact that many installations are in remote locations the Falcon also supports ADSL, ADSL2, and ADSL2+ to allow access to your applications remotely regardless of their physical location.

The Falcon, incredibly compact and built into a purpose designed case with an integrated DIN rail clip, has an operational temperature between –20 to +70ºC (–4 to 158°F) and is designed to operate in industrial EMC levels. High MTBF figures lead to an expected service life of more than 10 years. The often critical nature of the installations calls for reliability so the Falcon can be powered from separate DC voltages sources with inputs ranging from 19 – 60 VDC.

The Westermo Operating System (WeOS) is a feature rich operating system designed for the industrial markets. It provides the Falcon with cyber security functionality, such as DMZ, IPsec VPNs and a stateful inspection firewall configured to be secure by default. Management is done via an easy-to-use web interface, through an advanced CLI, or via SNMP.

Most industrial devices today have Ethernet communications ports so the Falcon comes equipped with a built in four (4) port layer 3 routing switch. The Falcon can cope with older legacy devices running RS-232 with its built in device server interface, making it perfect for analogue modem replacement projects. One model for ADSL over PSTN or ISDN removes the risk of having to know beforehand what unit to put into what application. Setting up a broadband connection has never been easier using the basic setup page.

FDV-205-1D1S

Product description
Status	Active
Article number	3660-0100
Ports	4 x 10 Mbit/s or 100 Mbit/s, Ethernet TX, RJ-45. 1 x 50 bit/s to 115.2 kbit/s, RJ-45, RS-232. 1 x ADSL, ADSL2/ASDL2+/VDSL2, RJ-11. 1 x USB.
Warranty period	5 Years
Description	Industrial Broadband Router
Reliability prediction
MTBF, operating	580 000 hours @ 25°C, MIL-HDBK- 217F
Service life, operating	10 year
EMC (Electromagnetic Compatibility)
EN 55024	Electromagnetic compatibility – Immunity IT equipment
EN 55024 + A1 + A2	Electromagnetic compatibility – Immunity IT equipment
EN 55022	Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
EN 55022 +A1	Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
EN 61000-6-2	Immunity industrial environments
EN 61000-6-4	Emission industrial environments
EN 61000-6-3	Emission residential, commercial and light-industrial environments
FCC part 15	Class A and Class B
EN 50121-4	Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD	Enclosure contact, ± 6 kV Enclosure air, ± 8 kV
IEC 61000-4-3, RF field AM modulated	Enclosure, 20 V/m 80% AM (1 kHz), 80 – 2 700 MHz
EN 61000-4-4, fast transients	Signal ports, ± 2 kV Power ports, ± 2 kV
EN 61000-4-5, surge	Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line
EN 61000-4-6, conducted RF immunity	Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz
EN 61000-4-9, pulsed magnetic field	Enclosure, 300 A/m, 6.4 / 16 μs pulse
EN 61000-4-29, voltage dips and interruption	DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage
EN 55022, radiated RF emission	Enclosure, class A
FCC part 15, radiated RF emission	Enclosure, class A
EN 55022, conducted emission	AC power ports, class B DC power ports, class B
FCC part 15, conducted emission	AC power ports, class B
Safety
EN 60950-1, dielectric strength	EN 60950-1, IT equipment
Climatic
Temperature, operating	–20 to +70ºC (–4 to +158°F)
Temperature, storage	–40 to +85ºC (–40 to +185°F)
Humidity, operating	5 to 95% relative humidity
Humidity, storage	5 to 95% relative humidity
Enclosure
Enclosure	UL 94. PC / ABS, flammability class V-1
Dimensions (W x H x D)	53 x 103 x 103 mm (2.08 x 4.05 x 4.05 in)
Weight	0.4 kg
Degree of protection	IP 40
Cooling	Convection
Mounting	Horizontal on 35 mm DIN-rail
Mechanical
IEC 60068-2-6, vibration	Operating: 5 – 20 Hz: 2 m²/s³ 20 – 200 Hz: – 3 dB/oct 3 axis = 3 * 30 min
IEC-60068-2-27, shock	Operating: 6 ms 1000 m/s² 6 directions, 3 shocks / direction
Interface specifications, power
Rated voltage	24 to 48 VDC
Operating voltage	19 to 60 VDC
Rated current	460 mA @ 24 VDC 220 mA @ 48 VDC
Rated frequency	DC
Inrush current	1 mA²s @ 24 VDC 3 mA²s @ 48 VDC
Startup current	760 mApeak @ 24 VDC 500 mApeak @ 48 VDC
Polarity	Reverse polarity protected
Redundant power input	Yes
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm² (AWG 24 – 12)
Shielded cable	Not required
Interface specifications, RS-232
Electrical specification	EIA RS-232
Data rate	300 bit/s to 115.2 kbit/s
Data format	7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
Protocol	Transparent, optimised by packing algorithm
Circuit type	SELV
Transmission range	15 m / 49 ft
Isolation to	Power, DSL, Ethernet
Galvanic connection to	USB, Console
Connection	RJ-45 (RJ-45 to RS-232 converter cable included)
Shielded cable	Not required
Conductive housing	Yes
Number of ports	1
Interface specifications, 10/100BaseTX
Electrical specification	IEEE std 802.3. 2005 Edition
Data rate	10 Mbit/s, 100 Mbit/s, manual or auto
Duplex	Full or half, manual or auto
Transmission range	150 m, according to long cable specification
Isolation to	All other
Connection	RJ-45 auto MDI/MDIX
Shielded cable	Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing	Yes
Number of ports	1
Interface specifications, console
Electrical specification	TTL-level
Data rate	115.2 kbit/s
Data format	8 data bits, none parity, 1 stop bit, no flow control
Circuit type	SELV
Transmission range	15 m
Isolation to	Power, DSL, Ethernet
Galvanic connection to	Serial, USB
Connection	2.5 mm jack, use Westermo cable 1211-2027
Interface specifications, USB
Electrical specification	USB 2.0 host interface
Data rate	Up to 12 Mbit/s (full-speed mode)
Circuit type	SELV
Maximum supply current	500 mA
Isolation to	Power, DSL, Ethernet
Galvanic connection to	Serial, Console
Connection	USB receptacle connector type A
Interface specifications, I/O relay output
Connect resistance	30 Ω
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm² (AWG 24 -12)
Maximum voltage / current	60 VDC / 80 mA
Interface specifications, I/O / Digital input
Voltage levels	Logic one >12V, Logic zero <1V
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm² (AWG 24 -12)
Interface specifications, DSL
Electrical specification	See standard table below
Data rate	250 Mbit U/D, limited to 100 Mbit
Protocol	EFM (VDSL2), llc/vc-mux encap Ethernet (ADSL), PPPoE (ADSL / VDSL2)
Isolation to	All other
Connection	RJ-11
Shielded cable	Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Number of ports	1
DSL, Standard/Annex	ETSI TS 101 270 / N/A ITU-T 993.2 (VDSL2) / A, B, J T1.424 / N/A ITU-T G.992.1 (ADSL) / A, B (non overlap) ITU-T G.992.2 (ADSL lite) / A (non overlap) ITU-T G.992.3 (ADSL2) / A, B, I, J, L, M (non overlap) ITU-T G.992.5 (ADSL2+) / A, B, I, J, M (non overlap) ANSI T1.413 / N/A
