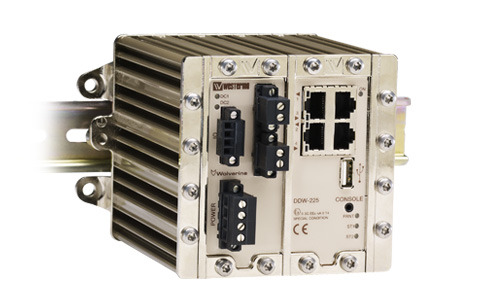

Wolverine, Redundant ring Ethernet extender--WESTERMO
DDW-225
     Product Information
Sorry£¬no relevant downloads£¡£¡£¡
Font Size¡¾ L¡¡M¡¡S ¡¿

The Wolverine DDW-225 allows effective Ethernet networks to be created over long distances (up to 15 km) at data rates up to 15.3 Mbit/s. The SHDSL technology makes it possible to reuse many types of pre-existing copper cables which can lead to considerable financial savings. Dependent on cable characteristics, distances up to 15 km (9.3 mi) can be achieved. The DDW-225 is powered by the WeOS operating system allowing complex networking functions to be easily configured. For simple applications, no configuration is required making the unit ideal for rapid installation.



With its robust aluminium housing, the DDW-225 is designed for use in heavy duty industrial applications. The wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications. The Transient Blocking Unit (TBU) is acknowledged as the most effective form of protection against damaging noise spikes caused by lightning or high voltage equipment.

Only industrial grade components are used which gives the DDW-225 an MTBF of 700,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved without the need for moving parts or cooling holes in the case. The DDW-225 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions. WeOS can de­liver unique IP security functionality for this class of product e.g. a multiport DMZ can be constructed by utilizing the internal port based firewall function. Remote secure access to a network can be provided using encrypted VPNs.
For resilience, a ring of DDW-225s can be created using the FRNT protocol, or by using OSPF, the DDW-225 can form part of an enterprise network. For more details on WeOS functionality, please see the WeOS datasheet.

DDW-225



Product description
Status Active
Article number 3642-0250
Ports 4 x 10/100 Base-TX: RJ-45
Description Redundant Ring Ethernet Extender
Warranty period 5 Years
Approvals
Hazardous locations EN 60079-0 and EN 60079-15
Standard compliance
SHDSL NEMKO, ITU-T G.991.2
Reliability prediction
MTBF, operating 700 000 hours @ 25°C, MIL-HDBK-217F
Service life, operating Operating, 10 year
EMC (Electromagnetic Compatibility)
EN 55024 + A1 + A2 Electromagnetic compatibility – Immunity IT equipment
EN 55022 +A1 Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement
EN 61000-6-2 Immunity industrial environments
EN 61000-6-4 Emission industrial environments
EN 61000-6-3 Emission residential, commercial and light-industrial environments
FCC part 15 Class A and Class B
EN 50121-4 Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD Enclosure contact, ± 6 kV
Enclosure air, ± 8 kV
IEC 61000-4-3, RF field AM modulated Enclosure:
10 V/m 80% AM (1 kHz), 80 – 1000 MHz
20 V/m 80% AM (1 kHz), 800 – 1000 MHz
10 V/m 80% AM (1 kHz), 1400 – 2100 MHz
5 V/m 80% AM (1 kHz), 2100 – 2500 MHz
1 V/m 80% AM (1 kHz), 2500 – 2700 MHz
EN 61000-4-4, fast transients Signal ports, ± 2 kV
Power ports, ± 2 kV
EN 61000-4-5, surge Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line
Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line
Power ports, ± 2 kV line to earth, ± 1 kV line to line
EN 61000-4-6, conducted RF immunity Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz
EN 61000-4-8, power frequency magnetic field Enclosure, 300 A/m
EN 61000-4-9, pulsed magnetic field Enclosure, 300 A/m
EN 61000-4-16, Mains freq. 50 Hz Signal ports, 100 V 50 Hz line to earth
SS 436 15 03, Mains freq. 50 Hz Signal ports, 250 V 50 Hz line to line
EN 61000-4-29, voltage dips and interruption DC power ports:
10 & 100 ms, interruption
10 ms, 30% reduction
10 ms, 60% reduction
+20% above & –20% below rated voltage
EN 55022, radiated RF emission Enclosure, Class A and Class B
EN 55016-2-3, radieted emission Enclosure, Class A and Class B
FCC part 15, radiated RF emission Enclosure, Class A and Class B
EN 55022, conducted emission DC power ports, Class A and Class B
Safety
Safety EN 60950-1, IT equipment
UL/IEC/EN 60950-1, IT equipment
EN 60950-1, dielectric strength Signal port to other isolated ports, 1500 Vrms 50 Hz 1 min
Power port to other isolated ports, 1500 Vrms 50 Hz 1 min
Climatic
Temperature, operating –40 to +70°C (–40 to +158°F)
Temperature, storage –40 to +70°C (–40 to +158°F)
Maximum surface temperature 135°C (temperature class T4)
Humidity, operating 5 to 95% relative humidity
Humidity, storage 5 to 95% relative humidity
Enclosure
Enclosure UL 94, aluminium/zink, flammability class V-0
Dimensions (W x H x D) 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in)
Weight 1.5 kg
Degree of protection IP 40
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail or wall-mouonted
Mechanical
IEC 60068-2-6, vibration Operating:
7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
IEC-60068-2-27, shock Operating, 15 g, 11 ms
Interface specifications, power
Rated voltage 20 to 48 VDC
Operating voltage 16 to 60 VDC
Rated current 330 mA (495 mA) @ 20 VDC (with 500 mA USB load)
150 mA (215 mA) @ 48 VDC (with 500 mA USB load)
Rated frequency DC
Inrush current 1.5 A2s
Startup current 400 mA
Polarity Reverse polarity protected
Redundant power input Yes
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable Not required
Interface specifications, console
Electrical specification TTL-level
Data rate 115.2 kbit/s
Data format 8 data bits, none parity, 1 stop bit, no flow control
Circuit type SELV
Isolation to All other except USB
Galvanic connection to USB
Connection 2.5 mm jack, use Westermo cable 1211-2027
Interface specifications, USB
Electrical specification USB 2.0 host interface
Data rate Up to 12 Mbit/s (full-speed mode)
Circuit type SELV
Maximum supply current 500 mA
Isolation to All other except Console
Galvanic connection to Console
Connection USB receptacle connector type A
Conductive housing Yes
Interface specifications, I/O relay output
Connect resistance 30 Ohm
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Maximum voltage / current 60 VDC / 80 mA
Interface specifications, I/O / Digital input
Voltage levels Logic one >12V, Logic zero <1V
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type TNV-1
Transmission range Up to 150 m with CAT5e cable or better
Isolation to All other
Connection RJ-45 auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing Yes
Number of ports 4
Interface specifications, DSL
Electrical specification ITU-T G.991.2 Annex B
Data rate 192 kbit/s to 15.3 Mbit/s
Protocol EFM according to IEEE 802.3-2005
Transmission range According to ITU-T G.991.2 depending on line quality
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable Not required
Number of ports 2
