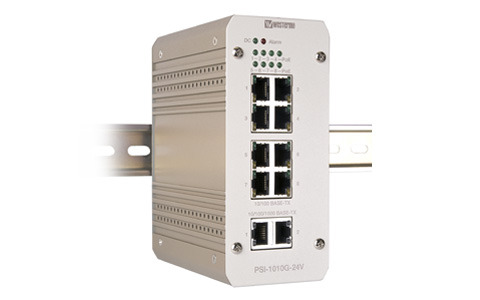

PoE technology is designed to eliminate the need for separate installation of power cables to equipment. Power is provided to equipment over the UTP data cabling. The PSI -1010 is a simple PoE switch capable of driving 8 connected devices as well as two Gbit uplink ports for the most bandwidth intensive applications.



Read more

The unit is designed for DIN rail mounting into industrial cabinets or vehicles allowing simple Ethernet connections to be established between PoE devices like cameras or access points. Two versions are available. One can deliver 48 V to PoE devices for a 48 V supply. The other model can with its unique booster technology allow the unit to deliver 48 V to equipment even if the input voltage level is only 12 to 24 V.



Designed to work in industrial environments with its IP 31 Aluminium housing and a wide temperature specification the PSI-1010 is an ideal automation solution,



The PSI-1010 is so easy to use, simply connect power to the screw terminals and plug in your RJ-45 cables. If you plan to use the fault contacts a DIP switch allows configuration whilst LEDs provide simple diagnostics if required.
