The Viper 008 is a rugged unmanaged Ethernet switch designed for applications with severe operating conditions and extreme environments. The Viper 008 meets the EN 50155 standard for electronic equipment used in railway applications. The super slim and extra robust housing is sealed to IP 65 and together with an MTBF (Mean Time Between Failure) calculated to more than a 100 years makes these units ideal for situations where mechanical stress, moisture, condensation, dirt or continuous vibrations could adversely affect the function of standard Ethernet switches.



Read more

The unit is well prepared for use in harsh industrial environments. The IP 65 sealed metal case and rugged M12 front connectors of the unit makes it robust and allows for the surrounding air temperature to be between –40 to +70°C. There are no sensitive or fragile components, hardening the product against shock and vibration making these units suitable for rolling stock usage. The power supply operates over a wide input range from 24 to 110 VDC ±40%.

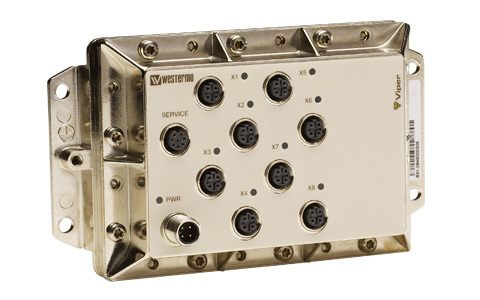

Viper-008

Product description
Status	Active
Article number	3641–0340
Ports	8 x 10/100BaseTX, M12 contact
Description	Ultra slim M12 switch platform
Warranty period	5 Years
Reliability prediction
MTBF, operating	Ground Benign: 150 years @ 20ºC 147 years @ 40ºC 135 years @ 60ºC Ground Mobile: 9,87 years @ 20ºC 9,85 years @ 40ºC 9,79 years @ 60ºC Ground Fix: 28,54 years @ 20ºC 28,43 years @ 40ºC 27,95 years @ 60ºC
Service life, operating	Operating, 10 year
EMC (Electromagnetic Compatibility)
EN 61000-6-1	Immunity residential environments
EN 61000-6-2	Immunity industrial environments
EN 55024	Immunity IT equipment
EN 55022	Emission IT equipment
EN 61000-6-3	Emission residential environments
EN 61000-6-4	Emission industrial environments
EN-50155	Railway applications - Electronic equipment used on rolling stock
EN-50121-3-2	Railway applications - EMC: Rolling stock – Apparatus
FCC part 15	Class B
EN 50121-4	Railway signalling and telecommunications apparatus
IEC 62236-4	Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD	Enclosure contact, ± 6 kV (crit A) Enclosure air, ± 8 kV (crit A)
IEC 61000-4-3, RF field AM modulated	Enclosure: 20 V/m 80% AM (1 kHz) 80 – 2500 MHz (crit A)
EN 61000-4-4, fast transients	Ethernet ports, ± 2 kV (crit A) Power port, ± 2 kV (crit A) Earth port, ± 2 kV (crit A)
EN 61000-4-5, surge	Fault port, ± 2 kV line to earth (crit A) Ethernet ports, ± 2 kV line to earth (crit A) Ethernet ports, ± 2 kV line to earth (crit A)
EN 61000-4-6, conducted RF immunity	Ethernet ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A) Power port, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A)
EN 61000-4-8, power frequency magnetic field	Enclosure: 1000 A/m 50 Hz 300 A/m 16.7 Hz, 60 Hz, DC (crit A)
EN 61000-4-9, pulsed magnetic field	Enclosure, 300 A/m (crit A)
EN-50155, voltage dips and interruption	DC power ports: 10 ms, interruption (crit A) 100 ms +- 40 % above/below rated voltage (crit A)
EN 55022, radiated RF emission	Enclosure, Class B
FCC part 15, radiated RF emission	Enclosure, Class B
EN 55022, conducted emission	DC power port & Ethernet ports, Class B
FCC part 15, conducted emission	DC power port, Class B
Safety
EN 60950-1, dielectric strength	Ethernet ports to other isolated ports, 707 VDC 1 min
Climatic
Temperature, operating	–40 to +70ºC (–40 to +158ºF)
Temperature, storage	–40 to +70ºC (–40 to +158ºF)
Humidity, operating	5 to 95% relative humidity
Humidity, storage	5 to 95% relative humidity
Enclosure
Enclosure	UL 94, Nickel coated zinc, flammability class V-1
Dimensions (W x H x D)	175 x 100 x 53,4 mm (6.88 x 3.93 x 2.10 in)
Weight	1 kg
Degree of protection	IP 65 when all ports are protected/connected else IP 40
Cooling	Convection
Mounting	DIN Rail or wall mounted
Mechanical
IEC 60068-2-6, vibration	Random simulated long life, not operating: Vertical: 7.9 m/s2 Transverse: 7.9 m/s2 Longitudinal: 7.9 m/s2 3 x 5 h Random functional, operating: Vertical: 1.0 m/s2 Transverse: 1.0 m/s2 Longitudinal: 1.0 m/s2 3 x 10 min
IEC-60068-2-27, shock	Half sine pulses, operating: Vertical: 50 m/s2 Transverse: 50 m/s2 Longitudinal: 50 m/s2 30 ms, 3 x 6 shocks Sawtooth, operating: Vertical: 100 m/s2 Transverse: 100 m/s2 Longitudinal: 100 m/s2 11 ms, 3 x 6 shocks
Interface specifications, power
Rated voltage	24 to 110 VDC
Operating voltage	Up to 110 VDC
Rated current	30 mA @ 110 VDC 90 mA @ 24 VDC
Rated frequency	DC
Inrush current	Max 0.02 A2s @ 24 – 110 VDC
Polarity	Reverse polarity protected
Redundant power input	No
Isolation to	Connections X1 – X8 and to ground, 1500 VAC. Fault relay belongs to the same isolation group as the power supply lines (fault relay signals are also contained within PWR).
Connection	4 pin male M12 connector with A-code
Connector size	M12, recommended cable area 0.5 mm2 recommended (minimum 0.25 mm2), cable dimensions depend on choice of M12 connector
Shielded cable	Not required, twisted pair is recommended
Fault relay resistance	< 10 Ω
Operating voltage	Up to 110 VDC
Interface specifications, 10/100BaseTX
Electrical specification	IEEE std 802.3. 2005 Edition
Data rate	10 Mbit/s or 100 Mbit/s
Duplex	Full or half
Circuit type	TNV-1
Transmission range	100 m / 328 ft
Isolation to	Other Ethernet ports, 500 VAC PWR, 1500 VAC
Galvanic connection to	None, except for shielded contact to housing
Connection	4-pole M12 female with D-code
Shielded cable	Not required, twisted pair is recommended
Conductive housing	Nickel plated zinc, metal housings of X1-X8 also connected to the housing
Number of ports	8 Ethernet (X1-X8)
