i-line, 12-port managed gigabit switch--WESTERMO
     Product Information
Sorry£¬no relevant downloads£¡£¡£¡
Font Size¡¾ L¡¡M¡¡S ¡¿

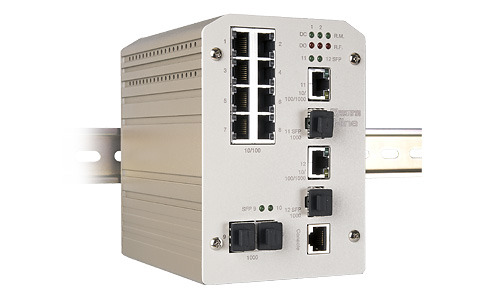

The MDI-112-F4G is a 12-port managed Ethernet switch with a flexible port setup options. The eight 10/100BaseT ports are ideal for local equipment connections whilst the Gbit ports are ideal for ring and uplink connections.
The switch is manufactured with 2 combo ports RJ-45- 10/100/1000 BaseT copper connections that are bypassed when 1000 Base-X SFPs are mounted giving the user great configuration flexibility. The other 2 Gbit SFP ports can be mounted with only 1000 BaseX SFPs.
Read more
The MDI series is designed for use in industrial environments such as factory automation, building automation and CCTV surveillance. No fans or other moving parts and only industrial grade components are used. The product is type-tested and approved according to a variety of industrial standards. The MDI has a rigid aluminium DIN mounted case sealed to IP 31 and can handle a wide input range from 12 to 48 VDC from dual power supplies and can operate in temperatures from –25° to +70°C (–13° to +158°F) degrees.
The MDI-series support single ring as well as dual homing rings technology which can be used for ring coupling. The ring protocol has a reconfiguration time of less than 300 ms and seamless network restoration. The MDI series also supports STP/RSTP for connection to multi-vendor resilient networks.
You can safely access your switch from anywhere in the network, or directly to the product via a console port. The HTTPS secured web configuration interface has been designed ’Made Easy’, setting up a redundant ring or a VLAN is just a few clicks away. For more advanced configuration, you will find an SSH encrypted industry standard CLI which allows extremely detailed settings. For safe handling and MIB readout the switch is also equipped with SNMPv3.
