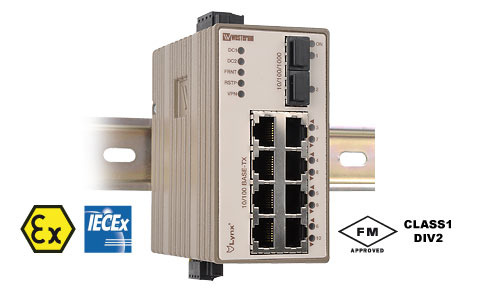

Lynx, managed EX approved Ethernet switch--WESTERMO
L110-F2G-EX
     Product Information
Sorry£¬no relevant downloads£¡£¡£¡
Font Size¡¾ L¡¡M¡¡S ¡¿
The Lynx 110-EX is a layer 2 managed industrial Ethernet switch, powered by the Westermo WeOS network operating system. Independently tested for IECEX and ATEX by Basefa as well as Class 1 Division II by FM the Lynx is the perfect solution for hazardous area applications in any part of the world.

Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx has 8 10/100 Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers.

Read more
Only industrial grade components are used which gives the Lynx an MTBF in excess of 500,000 hours (MIL-HDBK-217F (Gb) 25°C) and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside application.

WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions. WeOS can deliver 20 ms ring recovery performance even for networks with video or EtherNet/IP traffic



L110-F2G-EX

Product description
Status Active
Article number 3643-5100
Ports 8 x RJ-45, 10 Mbit/s, 100 Mbit/s, Ethernet TX. 
2 x Ethernet SFP 100 Mbit/s or 1000 Mbit/s pluggable connections (FX or TX) transceivers supported.
1 x Digital I/O. 
1 x 2.5 mm jack, console.
Description Managed EX approved Ethernet Switch
Warranty period 5 Years
Approvals
Marine DNV Standard for Certification no. 2.4
Hazardous locations EN 60079-0 and EN 60079-15
Reliability prediction
MTBF, operating 630 000 h (MIL-HDBK-217F (Gb) 25°C)
EMC (Electromagnetic Compatibility)
EN 61000-6-1 Immunity residential environments
EN 61000-6-2 Immunity industrial environments
EN 61000-6-4 Emission industrial environments
EN 55022 +A1 Emission IT equipment
EN 55024 Immunity IT equipment
FCC part 15 Class A
EN 50121-4 Railway signalling and telecommunications apparatus
IEC 62236-4 Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD Contact: ±6 kV
Air: ±8 kV
EN 61000-4-4, fast transients Power port, ±2 kV
Signal ports, ±2 kV
Earth port, ±1 kV
EN 61000-4-5, surge Power port
L-E: ±0.5 kV, 12 Ω, 9 μF
L-L: ±0.5 kV, 2 Ω, 18 μF
L-E: ±2 kV, 42 Ω, 0.5 μF
L-L: ±2 kV, 42 Ω, 0.5 μF
L-E: ±2 kV, 12 Ω, 9 μF
L-L: ±1 kV, 12 Ω, 9 μF

Signal ports
L-E: ±1 kV, 2 Ω
L-E: ±2 kV, 42Ω, 0.5 μF
EN 61000-4-8, power frequency magnetic field 300 A/m; 0, 16.7, 50 Hz
EN 61000-4-9, pulsed magnetic field 300 A/m
EN 61000-4-3, radiated RF immunity 10 V/m @ (80 – 800) MHz
20 V/m @ (800 – 1000) MHz
10 V/m @ (1400 – 2100) MHz
5 V/m @ (2100 – 2500) MHz
1 V/m @ (2500 – 2700) MHz
1 kHz sine, 80% AM
EN 55022, radiated RF emission Class A
FCC part 15, radiated RF emission Class A
EN 55022, conducted emission Power port, Class B
Signal ports, Class B
EN 61000-4-6, conducted RF immunity Power port, 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Signal ports, 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Earth port, 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Safety
Safety UL/IEC/EN 60950-1, IT equipment
EN 60950-1, dielectric strength Power port to all other ports, 1.5 kVrms, 50 Hz, 1 min
Signal ports to all other ports, 1.5 kVrms, 50 Hz, 1 min
Climatic
Temperature, operating –40 to +70°C (–40 to +158°F)
Temperature, storage –50 to +85°C (–58 to +185°F)
Humidity, operating 5 to 95 % relative humidity
Humidity, storage 5 to 95 % relative humidity
Enclosure
Dimensions (W x H x D) 52.5 x 100 x 101 mm (With connectors 52.5 x 119 x 101 mm)
Weight 0,7 kg
Degree of protection IP 40
Cooling Convection
Mounting DIN-rail
Mechanical
IEC-60068-2-27, shock 30 g, 11 ms
100 g, 6 ms
IEC 60068-2-6, vibration 3 – 13.2 Hz: 1mm
13.2 – 100 Hz: 0.7 g
5.5 – 30 Hz: 1.5 g
30 – 50 Hz: 0.42 mm
50 – 500 Hz: 4.2 g
IEC 60068-2-27, bump 10 g, 11 ms
Interface specifications, power
Operating voltage Rated: 24 to 48 VDC
Operating: 19 to 60 VDC
Rated current 240 mA @ 24 VDC
120 mA @ 48 VDC
Rated frequency DC
Inrush current 22.7·10-3 A2s @ 48 VDC
Startup current 2 x Rated current
Polarity Reverse polarity protected
Redundant power input Yes
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable Not required
Interface specifications, 10/100BaseTX
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10 Mbit/s, 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type TNV-1
Transmission range Up to 150 m with CAT5e cable or better
Isolation to All other
Connection RJ-45, auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails.
Conductive housing Yes
Number of ports 8
Interface specifications, 100/1000SFP
Optical/Electrical specification IEEE std 802.3. 2005 Edition
Data rate 100 Mbit/s or 1000 Mbit/s transceivers supported
Duplex Full or Auto, depending on transceiver
Transmission range Depending on tranceiver
Connection SFP slot holding fibre transceiver or copper transceiver
Number of ports 1 or 2
Interface specifications, I/O relay output
Maximum voltage / current 60 VDC / 80 mA
Connect resistance Max 30
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Interface specifications, I/O Digital output
Maximum volt / current 60 VDC / 2 mA
Voltage_levels Logic one: >12V
Logic zero: <1V
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Interface specifications, console
Electrical specification TTL-level
Data rate 115.2 kbit/s
Data format 8 data bits, no parity, 1 stop bit, no flow control
Circuit type SELV
Connection 2.5 mm jack, use only Westermo cable 1211-2027
