Product description |
|
Status |
Active |
|
Article number |
3643-5230 |
|
Ports |
4 x 10/100 Mbit/s, Ethernet TX, RJ-45.
2 x 100/1000 Mbit/s, pluggable connections transceivers supported, Ethernet FX or TX, SFP.
1 x Digital I/O.
1 x USB.
1 x 2.5 mm jack, console. |
|
Description |

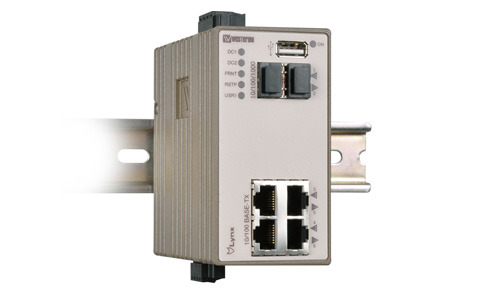

Managed EX approved Ethernet Switch |
|
Warranty period |
5 years |
|
Approvals |
|
Marine |
DNV Standard for Certification no. 2.4 |
|
Hazardous locations |
EN 60079-0 and EN 60079-15 |
|
EMC (Electromagnetic Compatibility) |
|
EN 61000-6-1 |
Immunity residential environments |
|
EN 61000-6-2 |
Immunity industrial environments |
|
EN 61000-6-3 |
Emission residential environments |
|
EN 61000-6-4 |
Emission industrial environments |
|
EN 55022 +A1 |
Emission IT equipment |
|
EN 55024 + A1 + A2 |
Immunity IT equipment |
|
FCC part 15 |
Class B |
|
EN 50121-4 |
Railway signalling and telecommunications apparatus |
|
IEC 62236-4 |
Railway signalling and telecommunications apparatus |
|
EMC specifications |
|
EN 61000-4-2, ESD |
Contact: ±6 kV
Air: ±8 kV |
|
EN 61000-4-4, fast transients |
Power port: ±2 kV
Ethernet: ±2 kV
Status out/Digital in: ±2 kV
Serial ports: ±2 kV
Enclosure: ±2 kV |
|
EN 61000-4-5, surge |
Power port
L-L: ±0.5 kV, 2 Ω, 18 μF
L-E: ±2 kV, 42 Ω, 0.5 μF
L-L: ±1 kV, 42 Ω, 0.5 μF
L-E: ±2 kV, 12 Ω, 9 μF
L-L: ±1 kV, 12 Ω, 9 μF
Ethernet
L-E: ±2 kV, 2Ω, 0.5 μF
Status out/Digital in
L-E: ±2 kV, 42 Ω, 0.5 μF
L-L: ±1 kV, 42 Ω, 0.5 μF
RS-232
L-E: ±2 kV, 2 Ω, 0.5 μF
RS-422/485
L-E: ±2 kV, 42 Ω, 0.5 μF |
|
EN 61000-4-8, power frequency magnetic field |
300 A/m; 0, 16.7, 60 Hz
1000 A/m; 50 Hz |
|
EN 61000-4-9, pulsed magnetic field |
300 A/m |
|
EN 61000-4-3, radiated RF immunity |
20 V/m @ (80 – 2700) MHz
1 kHz sine, 80% AM |
|
EN 61000-4-6, conducted RF immunity |
Power port: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Ethernet: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Status out/Digital in: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Serial ports: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
Earth port: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz |
|
EN 55022, radiated RF emmision, FCC Part 15/ DNV 2.4 |
EN 55022/FCC Part 15/DNV 2.4, Class B / DNV bridge |
|
EN 55022, conducted RF emmision, FCC Part 15/ DNV 2.4 |
EN 55022/FCC Part 15/DNV 2.4, Class B / DNV bridge |
|
DNV 2.4, compass safe distance |
Standard compass (5.4°/H deviation) = 15 cm
Steering/standby steering/emergency compass (18°/H deviation) = 10 cm |
|
Safety |
|
Safety |
UL/IEC/EN 60950-1, IT equipment |
|
EN 60950-1, dielectric strength |
Power port to all other ports: 1.5 kVrms, 50 Hz, 1 min
Ethernet ports to all other ports: 1.5 kVrms, 50 Hz, 1 min
RS-232 port to all other ports: 1.5 kVrms, 50 Hz, 1 min
RS-422/485 port to all other ports: 1.5 kVrms, 50 Hz, 1 min |
|
Reliability prediction |
|
MTBF, operating |
615 000 h (MIL-HDBK-217F (Gb) 25°C) |
|
Service life, operating |
10 years |
|
Climatic |
|
Temperature, operating |
–40 to +70°C (–40 to +158°F) |
|
Temperature, storage |
–50 to +85°C (–58 to +185°F) |
|
Humidity, operating |
5 to 95 % relative humidity |
|
Humidity, storage |
5 to 95 % relative humidity |
|
Enclosure |
|
Enclosure |
Fire enclosure |
|
Dimensions (W x H x D) |
52.5 x 100 x 101 mm |
|
Weight |
0.7 kg |
|
Degree of protection |
IP 40 |
|
Cooling |
Convection |
|
Mounting |
Horizontal on 35 mm DIN-rail |
|
Mechanical |
|
IEC 60068-2-6, vibration |
IEC 60068-2-6,(sine), operating
3 – 13.2 Hz: 1mm
13.2 – 100 Hz: 0.7 g
5.5 – 30 Hz: 1.5 g
30 – 50 Hz: 0.42 mm
50 – 500 Hz: 4.2 g
IEC 60068-2-64 (random), operating
5 – 20 Hz: 2 m²/s³,
20 – 2000 Hz: – 3 dB/oct |
|
IEC-60068-2-27, shock |
Operating:
30 g, 11 ms
100 g, 6 ms** |
|
IEC 60068-2-27, bump |
Operating:
10 g, 11 ms |
|
Interface specifications, power |
|
Operating voltage |
Rated: 24 to 48 VDC
Operating: 19 to 60 VDC |
|
Rated current |
250 mA (380 mA) @ 24 VDC (with 500 mA USB load)
120 mA (188 mA) @ 48 VDC (with 500 mA USB load) |
|
Rated frequency |
DC |
|
Inrush current |
22.7·10-3 A2s @ 48 VDC |
|
Startup current |
2 x Rated current |
|
Polarity |
Reverse polarity protected |
|
Redundant power input |
Yes |
|
Isolation to |
All other |
|
Connection |
Detachable screw terminal |
|
Connector size |
0.2 – 2.5 mm2 (AWG 24 – 12) |
|
Shielded cable |
Not required |
|
Interface specifications, 10/100BaseTX |
|
Electrical specification |
IEEE std 802.3. 2005 Edition |
|
Data rate |
10 Mbit/s, 100 Mbit/s, manual or auto |
|
Duplex |
Full or half, manual or auto |
|
Circuit type |
TNV-1 |
|
Transmission range |
Up to 150 m with CAT5e cable or better* |
|
Isolation to |
All other |
|
Connection |
RJ-45, auto MDI/MDI-X |
|
Cabling |
Shielded CAT5e or better is recommended |
|
Conductive housing |
Yes |
|
Number of ports |
4 |
|
Interface specifications, 100/1000SFP |
|
Optical/Electrical specification |
IEEE std 802.3. 2005 Edition |
|
Data rate |
100 Mbit/s or 1000 Mbit/s transceivers supported |
|
Duplex |
Full or Auto, depending on transceiver |
|
Transmission range |
Depending on tranceiver |
|
Connection |
SFP slot holding fibre transceiver or copper transceiver |
|
Number of ports |
1 or 2 |
|
Interface specifications, I/O relay output |
|
Maximum voltage / current |
60 VDC / 80 mA |
|
Connect resistance |
Max 30 |
|
Isolation to |
All other |
|
Connection |
Detachable screw terminal |
|
Connector size |
0.2 – 2.5 mm2 (AWG 24 – 12) |
|
Interface specifications, I/O Digital output |
|
Maximum volt / current |
60 VDC / 2 mA |
|
Voltage_levels |
Logic one: >12V
Logic zero: <1V |
|
Isolation to |
All other |
|
Connection |
Detachable screw terminal |
|
Connector size |
0.2 – 2.5 mm2 (AWG 24 – 12) |
|
Interface specifications, USB |
|
Electrical specification |
USB 2.0 host interface |
|
Data rate |
Up to 12 Mbit/s (full-speed mode) |
|
Circuit type |
SELV |
|
Maximum supply current |
500 mA |
|
Connection |
USB receptacle connector type A |
|
Interface specifications, console |
|
Electrical specification |
LVTTL/LVCMOS-level |
|
Data rate |
115.2 kbit/s |
|
Data format |
8 data bits, no parity, 1 stop bit, no flow control |
|
Circuit type |
SELV |
|
Connection |
2.5 mm jack, use only Westermo cable 1211-2027 |
