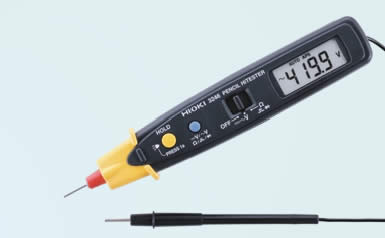

3246 PENCIL HiTESTER--HIOKI
3246
     Product Information
Sorry£¬no relevant downloads£¡£¡£¡
Font Size¡¾ L¡¡M¡¡S ¡¿
Pencil-type DMM with Penlight
-Full-auto ranging, 4199 count display
-Penlight brightly illuminates test points
-Overload protection to 600 V (ohm and continuity functions)

Basic specifications
DC Voltage range 420.0 mV to 600V, 5 ranges, Best accuracy: ¡À1.3 % rdg. ¡À4 dgt.
AC Voltage range 4.200 V to 600V, 4 ranges, Accuracy: ¡À2.3 % rdg. ¡À 8 dgt. , Average rectifier effective value
Frequency characteristics at AC Voltage 50 to 500 Hz
Resistance range 420.0 ohm to 42.00 M-ohm, 6 ranges, Best accuracy: ¡À2.0 % rdg. ¡À4 dgt.
Continuity Possible 50 ohm ¡À30 ohm
Diode check Possible (3.4 V open terminal voltage)
Auto power save Possible (Cancel possible)
Range switching Auto or Manual
Display Digital/LCD, maximum 4199 dgt.
Sampling rate 2.5 times/sec
Safety considerations Safety: EN61010, overvoltage category III 600V, EMC: EN61326
Power supply CR2032 ¡Á1 battery, (Continuous use 150 hours)
Dimensions, mass 30 mm(1.18in)W ¡Á182 mm(7.17in)H ¡Á26.5 mm(1.05in)D, 80g(2.8 oz)
